- UX2 传感器

校准传感器

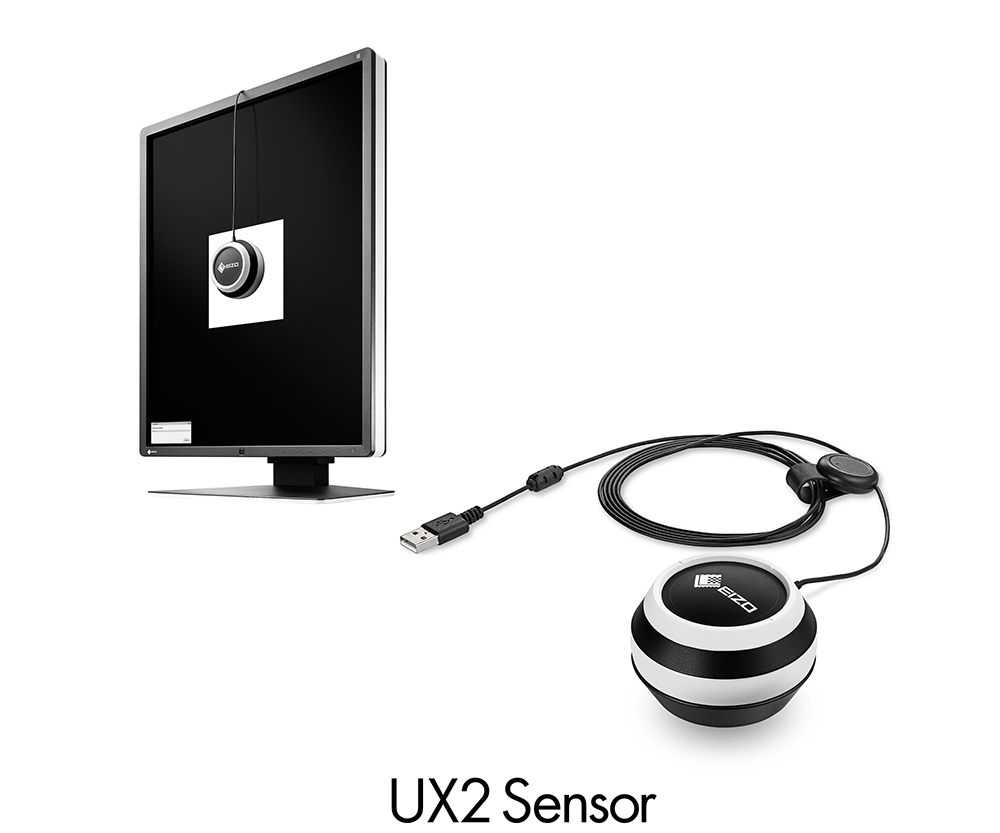

The UX2 Sensor is an external calibration sensor for medical monitor use. It measures many monitor characteristics such as brightness and gradations, and corrects any changes.

2 items

Compare

特性
规格
文件
显卡
质量控制软件和工具配件

Long Term Stability and Performance

Typical sensors are easily influenced by environmental changes in humidity, causing a drop in performance. To combat this, the UX2 Sensor was designed using the same technology as our built-in LCD monitor calibrators. Compared to the previous model, the UX2 Sensor is more resistant to humidity and impact, and carries out stable measurements and performance for long-term reliability.

Easy to Use

The UX2 Sensor is equipped with an LED indicator to indicate when the sensor is successfully connected to the monitor. Furthermore it has a protective cap that prevents the calibrator from becoming dirty when not in use, ensuring continued quality performance.

LED indicator

LED Indicator

Protective cap

Protective Cap

Lightweight and Simple Design

The UX2 Sensor has a black and white design to match our range of RadiForce medical monitors. Its EIZO original design displays a white ring around the side for a simple and lightweight design.

Lightweight and Simple Design

Compliance with Quality Control Standards

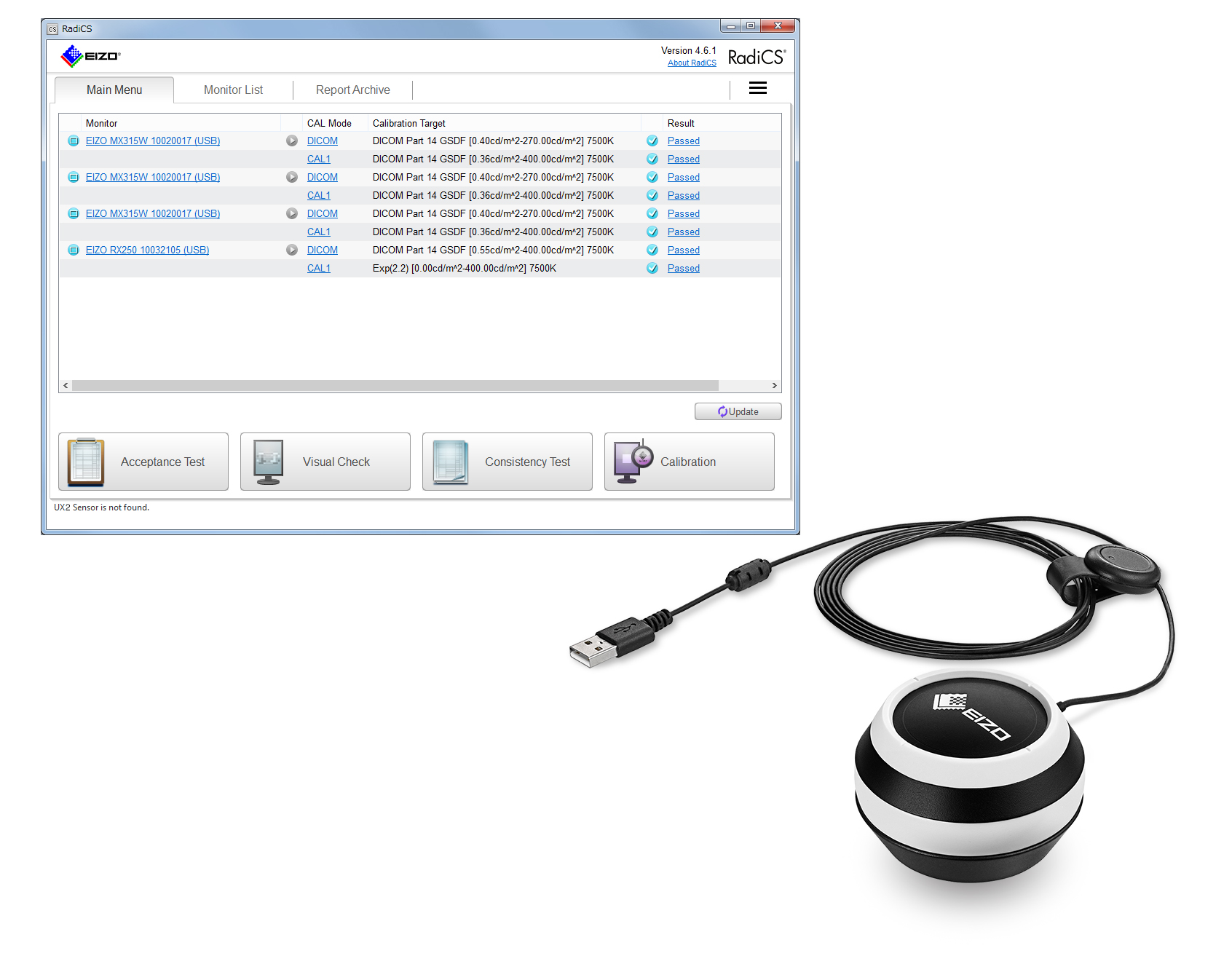

When used in combination with our medical monitor quality control software RadiCS, the UX2 Sensor complies with quality control standards of various countries such as JESRA, AAPM and DIN; ensuring uniform brightness and gradation according to these standards.

Compliance with DICOM Part 14

When used in combination with our medical monitor control quality software RadiCS, the UX2 Sensor is able to calibrate with high precision according to DICOM Part 14 standards, correcting for changes in monitor characteristics caused by aging.

Compliance with DICOM Part 14

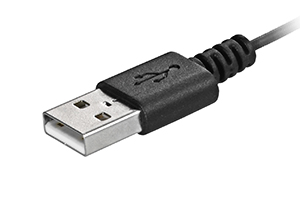

Simple Connection

The UX2 Sensor can be easily connected by plugging it into the monitor via USB, and then connecting the monitor to the PC via USB.

Simple Connection

Compatible models

RadiForce

Monochrome Monitors	5MP GX550, GX540, GX530, GS521-ST, GS521, GS520, GS510
	3MP GX340, GX320, GS320, GS310
	2MP GX240, GX220, GS220
Color Monitors	8MP RX850, RX840-MG, RX840, MX315W
	6MP RX660, RX650
	5MP RX560
	4MP RX440, RX430, MX300W
	3.7MP MX270W
	3MP RX360, RX350, RX340, RX320
	2.3MP MX242W, MX241W, MX240W, MX220W
	2MP RX250, RX240, RX220, RX211, MX215, MX210
	1MP RS110, MX194, MX191
Quality Control Software & Tools	QC Software & Calibration Sensor RadiCS UX2

UX1 Sensor is recommended for RadiForce MX300W, MX240W, MX220W and MX210.

接口	USB
尺寸	Φ70.0 x H 44.0 mm
重量	100 g
包装内容	存储盒，吸附片(更换使用），清洁布，UX2使用说明书
