Analog Resistive Touch Screen
This monitor uses analog resistive touch technology which delivers reliant performance in environments where equipment must stand up to dust and liquids such as in factories and clean rooms. It is compatible with the Windows 2000, XP (32-bit), and Vista (32-bit) operating systems, provides a long touch life (minimum 35 million touches), and accepts input from both a bare and a gloved hand. For the touch interface both RS-232C serial and USB upstream ports are included.
IP65-Rated Front Panel
The front panel is IP65-rated meaning it can withstand dust ingress and is protected against low-pressure water jets. This durability ensures the monitor is ideal for deployment in factories.
Digital and Analog PC Inputs
Both DVI and D-Sub mini 15 pin inputs are included for connecting to PCs with either a digital or analog graphics board.
Scale Non-Native Resolutions
When working at less than the native resolution or aspect rations other than 4:3, you can use the scaling function to enlarge the screen proportionally or expand it to fill the screen. You can also expand the horizontal and vertical portion of the image as desired.
 |
||
| Enlarge (aspect ratio maintained) | Full Screen | Expand horizontally or vertically |
Sync-on-Green Support
Sync-on-green support ensures compatibility with legacy graphics boards that output this signal.
2-Year Warranty, 24-Hour Use
This monitor is built for 24-hours use and is backed by a two-year manufacturer's warranty. It can be used in ambient temperatures from 0 – 40° C.

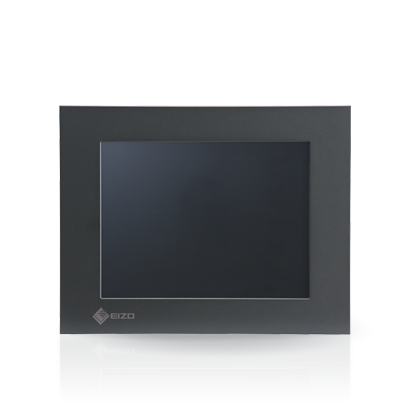

| Model Variations | Panel mount |
|---|---|
| Panel | |
| Type | TN |
| Backlight | CCFL |
| Size | 15" / 38 cm |
| Native Resolution | 1024 x 768 |
| Display Size (H x V) | 304.1 x 228.1 mm |
| Pixel Pitch | 0.297 x 0.297 mm |
| Display Colors | 16.2 million |
| Brightness (typical) |
250 cd/m2
(200 cd/m2 with touch screen) |
| Touch Panel | |
| Type | Analog resistive |
| Communication Protocol | USB or RS232 |
| Touch Life | 35 million touches (minimum) |
| Compatible OS | Vista (32-bit) / XP (32-bit) |
| Video Signals | |
| Input Terminals | D-Sub mini 15 pin x 1, DVI-I x 1 |
| Analog Scanning Frequency (H / V) | 30 - 100 kHz, 50 - 75 Hz |
| Sync Formats | Sep. Sync. (TTL), Sync on green, Composite Sync |
| Video Input Format | NTSC, PAL, SECAM |
| Power | |
| Power Requirements |
DC 11.4 - 13.2 V
DC 18 - 36 V AC 100 - 240 V |
| Maximum Power Consumption | approx. 24 W |
| Standby Mode | approx. 4 W |
| Power Management | VESA DPMS |
| Physical Specifications | |
| Dimensions (Panel Mount, W x H x D) | 428 x 336 x 51 mm |
| Net Weight (Panel Mount) | 4.4 kg |
| Environmental Requirements | |
| Temperature | 0 - 40 °C |
| Humidity (R.H., non condensing) | 95% max. |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | CE |
| Supplied Accessories | AC adapter, Power cord, Signal cable, USB cable, CD-ROM for Touch Driver, User's manual, Connector block plug |
| Warranty | Two years |
