IP65-Rated Front Panel
The front panel is IP65-rated meaning it can withstand dust ingress and is protected against low-pressure water jets. This durability ensures the monitor is ideal for deployment in factories.
PC and AV Inputs
Both DVI and D-Sub mini 15 pin analog inputs are included for connecting to PCs. In addition, BNC (composite) and S-video inputs which support NTSC, PAL, and SECAM are included for connecting to audio/visual equipment. To reduce noise (ghosting) with NTSC signals, both the composite and S-Video inputs have a 3-dimensional Y/C separation circuit.
Picture-in-Picture
Both PC and video content can be viewed simultaneously with a picture-in-picture function. The size (small, medium, large) and position (9 defined positions) are user controlled.
 |
||
| Size | Position | Window Selection |
Scale Non-Native Resolutions
When working at less than the native resolution or aspect rations other than 4:3, you can use the scaling function to enlarge the screen proportionally or expand it to fill the screen. You can also expand the horizontal and vertical portion of the image as desired.
 |
||
| Enlarge (aspect ratio maintained) | Full Screen | Expand horizontally or vertically |
Wide Scanning Frequency and Sync-on-Green Support
The monitor supports horizontal scanning frequencies of 15 – 100 kHz so resolutions as low as 320 × 240 can be displayed. It also includes sync-on-green support to ensure compatibility with legacy graphics boards that output this signal.
2-Year Warranty, 24-Hour Use
This monitor is built for 24-hours use and is backed by a two-year manufacturer's warranty. It can be used in ambient temperatures from 0 – 40° C.

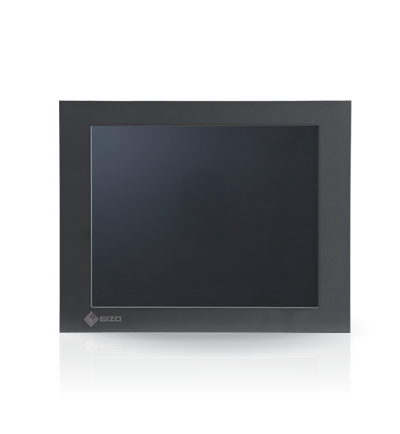

| Model Variations | Panel mount |
|---|---|
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 19" / 48 cm |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Display Size (H x V) | 376.3 x 301.1 mm |
| Pixel Pitch | 0.294 x 0.294 mm |
| Display Colors | 16.7 million |
| Brightness (typical) | 300 cd/m2 |
| Video Signals | |
| Input Terminals | D-Sub mini 15 pin x 1, DVI-I x 1, Composite (BNC) x 1, S-Video (mini DIN) x 1 |
| Analog Scanning Frequency (H / V) | 15 - 100 kHz, 50 - 100 Hz |
| Sync Formats | Sep. Sync. (TTL), Sync on green, Composite Sync |
| Video Input Format | NTSC, PAL, SECAM |
| Power | |
| Power Requirements | AC 100 - 240 V |
| Maximum Power Consumption | approx. 32W |
| Standby Mode | approx. 4 W |
| Power Management | VESA DPMS |
| Physical Specifications | |
| Dimensions (Panel Mount, W x H x D) | 481 x 384.4 x 68mm |
| Net Weight (Panel Mount) | 6.5 kg |
| Environmental Requirements | |
| Temperature | 0 - 40 °C |
| Humidity (R.H., non condensing) | 95 % max. |
| Supplied Accessories | AC adapter, Power cord, Signal cable, USB cable, User's manual |
| Warranty | Two years |
