PC and Video Inputs
This monitor is equipped with an analog D-Sub mini 15 pin input for connection to a PC and a composite (BNC) input for connecting to video surveillance equipment such as closed-circuit televisions (CCTV) and security cameras.
High Image Quality
To reduce ghosting and flicker, the video input has a Y/C separation circuit which separates the brightness signal (Y) from the color information signal (C), allowing the monitors to display high quality images with little noise. The monitor produces 16.77 million colors for clear and vivid display.

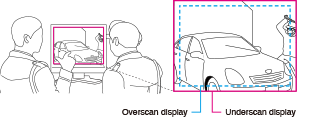

Underscan and Normal Display
Both underscan and normal display settings are available. Underscan shows 100% of an image and is ideal for video. Overscan displays about 95% of an image, which eliminates extraneous TV broadcasting data that sometimes appears at the edges of the screen.
Versatile Positioning
The stand has a 100 mm height adjustment range, 30° tilt, 35° swivel, and 90° pivot for portrait mode so the screen can be adjusted to the ideal viewing position.
NTSC/PAL/SECAM Support
The monitor supports NTSC, PAL, and SECAM signals and can connect to a variety of different security and surveillance equipment.
Built-in Speakers
Compact dual-watt stereo speakers with RCA inputs are built-in for audio capability with both PC and video sources.
High Brightness Display
With a maximum brightness level of 350 cdm2, the screen has high visibility even in bright ambient environments.
LED Backlight
The monitor comes equipped with an energy-saving LED backlight. Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free to have minimal impact on the environment when they are eventually disposed of.
24-Hour Use, 2-Year Warranty
The FDS1703 offers long-term reliability; it is built for 24-hour use and is backed by a two-year manufacturer's warranty.
To ensure each EIZO monitor meets our high standards, we develop, manufacture, and test them ourselves at our own facilities. Our quality control process includes long-life testing where monitors are left on for tens of thousands of hours and an on-site anechoic chamber to test for compliance with international EMC (electromagnetic capability) regulations.
| Model Variations | With Stand, Without Stand |
|---|---|

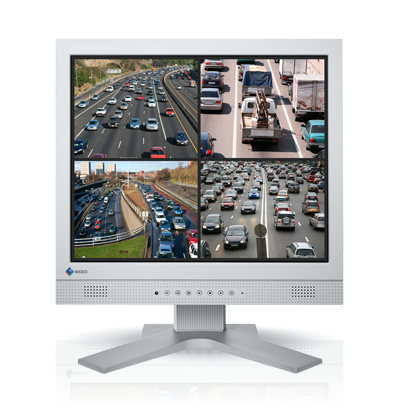

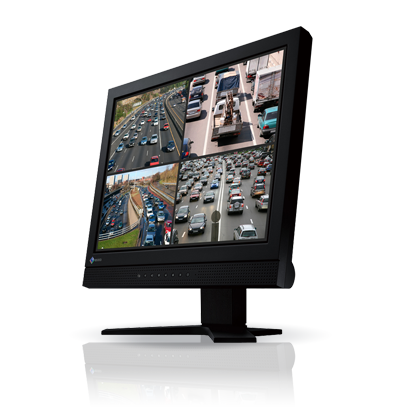

| Cabinet Color | Gray, Black |
| Panel | |
| Type | TN |
| Size | 17" / 43 cm (432 mm diagonal) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Display Size (H x V) | 337.9 x 270.3 mm |
| Pixel Pitch | 0.264 x 0.264 mm |
| Grayscale Tones | 256 tones (a palette of 1021 tones) |
| Display Colors | 16.77 million from a palette of 1.06 billion |
| Viewing Angles (H / V, typical) | 160°, 140° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 800:1 |
| Response Time (typical) | 30 ms (Black-white-black) |
| Video Signals | |
| Input Terminals |
PC: D-Sub mini 15 pin x 1 AV: BNC (Composite) x 1 |
| Digital Scanning Frequency (H / V) | - |
| Analog Scanning Frequency (H / V) | 24.8 - 74.8 kHz, 56.2 - 75.1 Hz |
| Video Input Format | NTSC, PAL, SECAM |
| Audio | |
| Speakers | 0.5 W + 0.5 W |
| Input Terminals | RCA x 1 |
| Sound Adjustment | Volume |
| Power | |
| Power Requirements | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 36 W |
| Power Save Mode | Less than 8 W |
| Standby Mode | Less than 1.0 W |
| Features & Functions | |
| Others |
PC: Color Adjustment (Brightness, Contrast, Phase, Frequency, Sharpness, Saturation, Hue, Color Temperature), Backlight, DPMS, OSD Menu Settings, Gamma Table, Source Scan, Analog RGB Calibration, Reset Calibration, Video Aspect, Language, Factory Reset, Test Pattern AV: Color Adjustment (Brightness, Contrast, Sharpness, Color, Tint, Color Temperature), Backlight, DPMS, OSD Menu Settings, Gamma Table, Source Scan, Video Aspect, Language, Factory Reset, Test Pattern |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 380 x 400 - 500 x 205 mm |
| Dimensions (Without Stand, W x H x D) | 380 x 353 x 58 mm |
| Net Weight | 5.9 kg / 13.0 lbs |
| Net Weight (Without Stand) | 4.1 kg / 9.0 lbs |
| Height Adjustment Range | 100 mm |
| Tilt | 30° Up, 0° Down |
| Swivel | 35° Right, 35° Left |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Temperature | 0 - 35 °C |
| Humidity (R.H., non condensing) | 20 - 80 % |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | C-Tick, CE, CB, cTUVus, FCC-A, Canadian ICES-003-A, TUV/S, VCCI-A, RoHS, WEEE, CCC, GOST-R, China RoHS |
| Supplied Accessories | AC power cord, PDF user's manual with warranty card, 4 screws for mount option |
| Warranty | Two Years |
