Reliable Delivery and Long-Term Product Support
EIZO develops, manufactures, and quality control tests its own products to ensure it can tailor them to the needs of a particular market such as security and surveillance. With a wide scope of visual display products for both corporate and specialty markets, EIZO has a strong relationship with suppliers that allow it to provide timely, reliable delivery and long-term product support.
PC and Video Inputs
A D-sub analog input is included for connecting to PCs. A composite (BNC) input supports NTSC, PAL, and SECAM and is included for connecting to video surveillance equipment such as closed-circuit televisions (CCTV) and security cameras. To reduce noise (flicker), the composite input has a 3-dimensional Y/C separation circuit for NTSC signals which separates the brightness signal (Y) from the color information signal (C).
Underscan and Normal Display
Both underscan and normal display settings are available. Underscan shows 100% of an image and is ideal for watching video. Normal display about 95% of the image – eliminating extraneous TV broadcasting data that sometimes appears at the edge of the screen.
24-Hour Use, 2-Year Warranty
The DuraVision FDS1901 offers long-term reliability; it is built for 24-hours use and is backed by a two-year manufacturer's warranty.
Versatile Positioning
Position the screen wherever you like with 100 mm height adjustment, 30° tilt, and 70° swivel, and 90° pivot for portrait mode. The power supply is built in, so there is no separate power brick or cord. Compliance with VESA standards means the panel can be removed from the stand and placed on a movable arm or wall bracket.

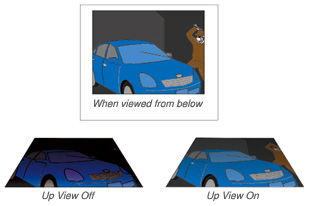

Clear View from Below
In environments where the monitor is placed above eye level and the user must look up to see the screen, the DuraVision FDS1901 includes an "Up View" function which minimizes washing out of colors that may occur when viewing an LCD screen from below.
Three Preset Modes
Light, Dark, and Dynamic preset modes are included. Light and Dark modes are ideal for use in bright and dim ambient environments respectively. Dynamic mode brings out the contrast among darker tones for better recognition of detail when the monitor is displaying content from dimly lit environments.

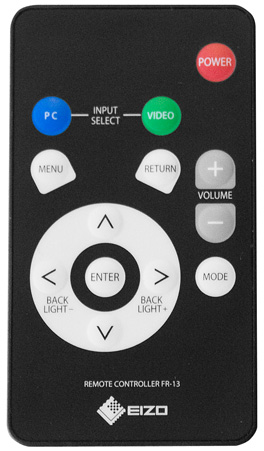

Remote Control
|
A remote control is included for turning the monitor's power on/off, navigating the OSD menu, adjusting the volume, and toggling among the preset modes. |
|
| Model Variations | With Stand, Without Stand |
|---|---|
| Cabinet Color | Gray, Black |
| Panel | |
| Type | TN |
| Size | 19" / 48 cm (481 mm diagonal) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Display Size (H x V) | 376 x 301 mm |
| Pixel Pitch | 0.294 x 0.294 mm |
| Grayscale Tones | 256 tones (a palette of 1021 tones) |
| Display Colors | 16.77 million from a palette of 1.06 billion |
| Viewing Angles (H / V, typical) | 170°, 170° |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (Black-white-black) |
| Video Signals | |
| Input Terminals |
PC: D-Sub mini 15 pin x 1 AV: BNC (Composite) x 1 |
| Analog Scanning Frequency (H / V) | 24.8 - 74.8 kHz, 56.2 - 75.1 Hz |
| Video Input Format | NTSC, PAL, SECAM |
| Audio | |
| Speakers | 0.3 W + 0.3 W |
| Input Terminals | RCA x 1 |
| Power | |
| Power Requirements | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 49 W |
| Power Save Mode | Less than 8 W |
| Standby Mode | Less than 1.3 W |
| Features & Functions | |
| Others |
PC: Color Adjustment (Brightness, Contrast, Sharpness, Color Temperature), Backlight, DPMS, OSD Menu Settings, Gamma Table, Source Scan, Analog RGB Calibration, Reset Calibration, Video Aspect, Language, Factory Reset, Test Pattern AV: Color Adjustment (Brightness, Contrast, Sharpness, Color, Tint, Color Temperature), Backlight, DPMS, OSD Menu Settings, Gamma Table, Source Scan, Video Aspect, Language, Factory Reset, Test Pattern |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 405 x 406.5 - 506.5 x 205 mm |
| Dimensions (Without Stand, W x H x D) | 405 x 334 x 61.5 mm |
| Net Weight | 7.2 kg / 15.9 lbs |
| Net Weight (Without Stand) | 5.2 kg / 11.5 lbs |
| Height Adjustment Range | 100 mm |
| Tilt | 30° Up, 0° Down |
| Swivel | 35° Right, 35° Left |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Temperature | 0 - 35 °C |
| Humidity (R.H., non condensing) | 20 - 80 % |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | C-Tick, CE, CB, cTUVus, FCC-A, Canadian ICES-003-A, TUV/S, VCCI-A, RoHS, WEEE, CCC, GOST-R |
| Supplied Accessories | AC power cord, Remote Control with battery, PDF user's manual with warranty card, 4 screws for mount option |
| Warranty | Two Years |
- 2 With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
